Crimson Avenger SC Electric Guitar

Specifications

• Body:

  3-piece scorched pine
• Neck:

  Bolt-on maple
• Fretboard:

  Weathered maple with 21 frets
• Radius:

  9.5”
• Neck Profile:

  C
• Pickups:

  2 Alnico V single coils
• DC Resistance:

  BR 6k (pot down), 9k (pot up), NK 8k
• Controls:

  Master Volume, Master Tone with push-pull for tapping bridge pickup, 4-way pickup switch
• Scratchplate:

  Designed and 3D-printed by Enterprise XD Design
• Control Plate:

  Designed and 3D-printed by Enterprise XD Design

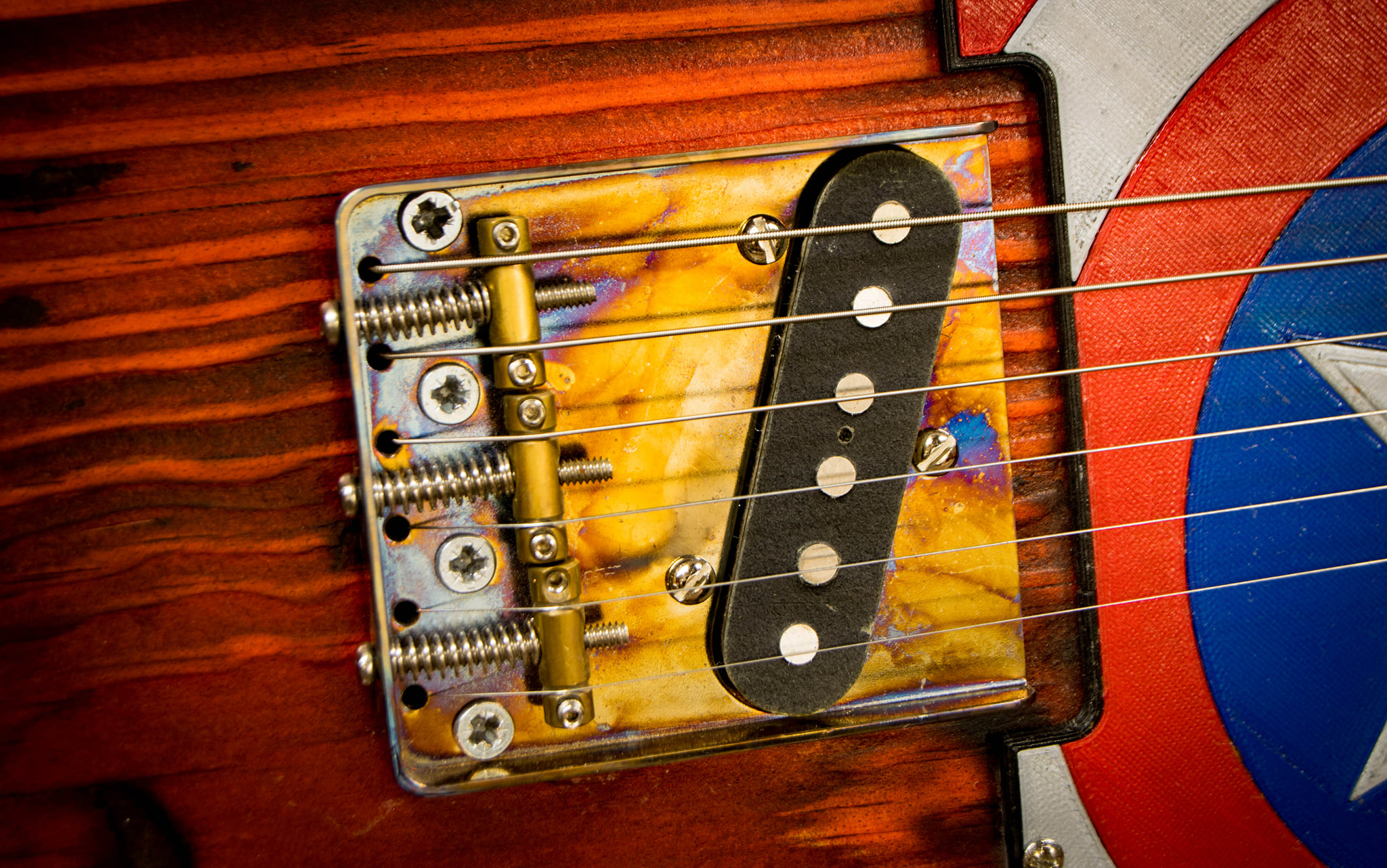

• Bridge:

  Oil-finished, solid brass saddles

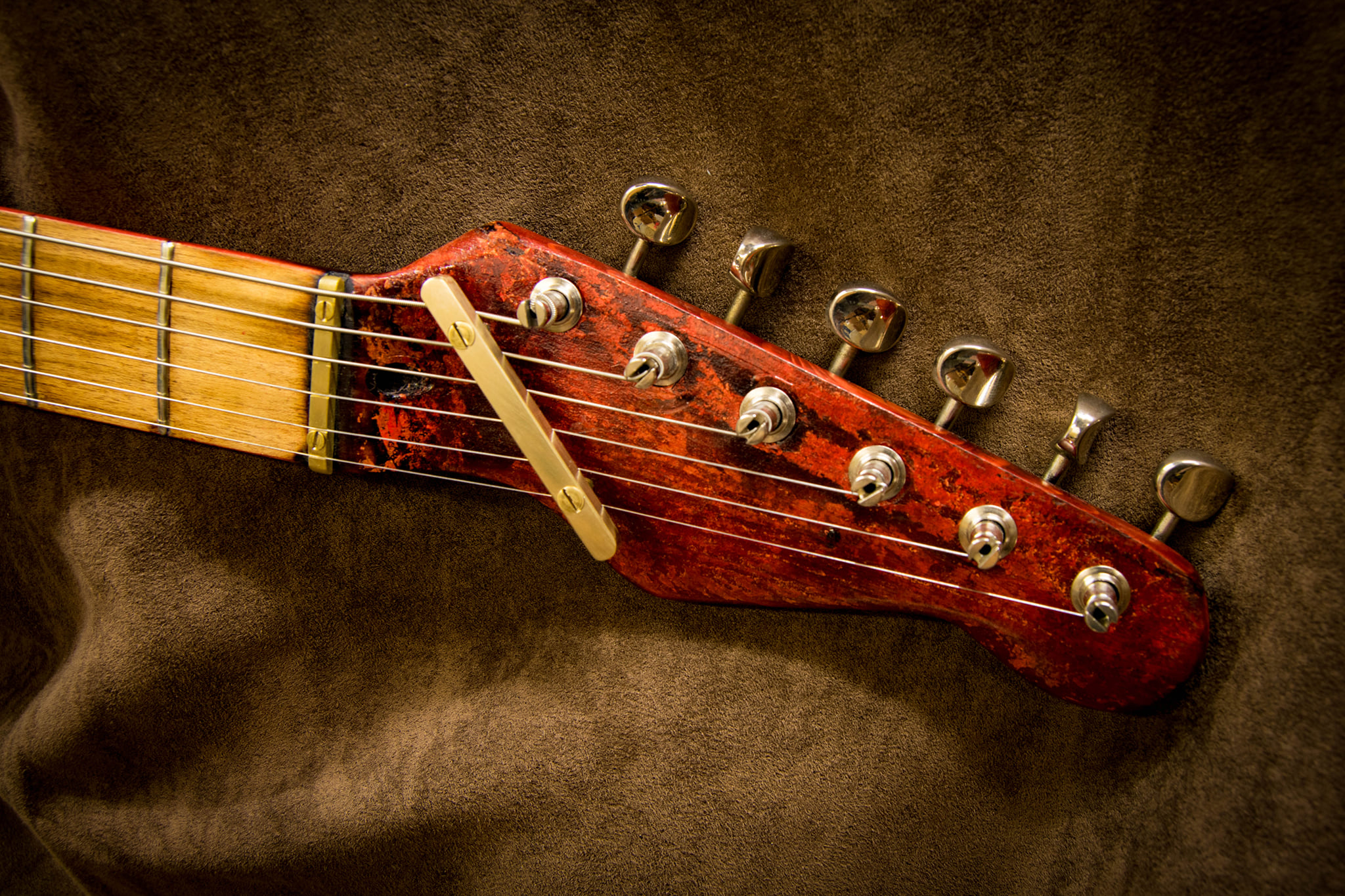

• Tuners:

  Non-locking split-post
• Nut:

  Custom solid brass
• String Retainer:

  Custom solid brass
• Weight:

  7lbs 6oz/3.3kg
• Strings:

  10-46
• Technical Notes:

  The switching system works as follows:

  The main 4-way switch selects Bridge (6k) - Bridge (6k) & Neck (parallel) - Bridge (6k) & Neck (series) - Neck.

  The push-pull tone pot offers two outputs for the bridge pickup. This gives you the following additional 3 options: Bridge (9k) - Bridge (9k) & Neck (parallel) - Bridge (9k) & Neck (series). Obviously, this gives you 7 switchable tones in total.
